What types of test modes are supported on the Dansensor Lippke 5000?

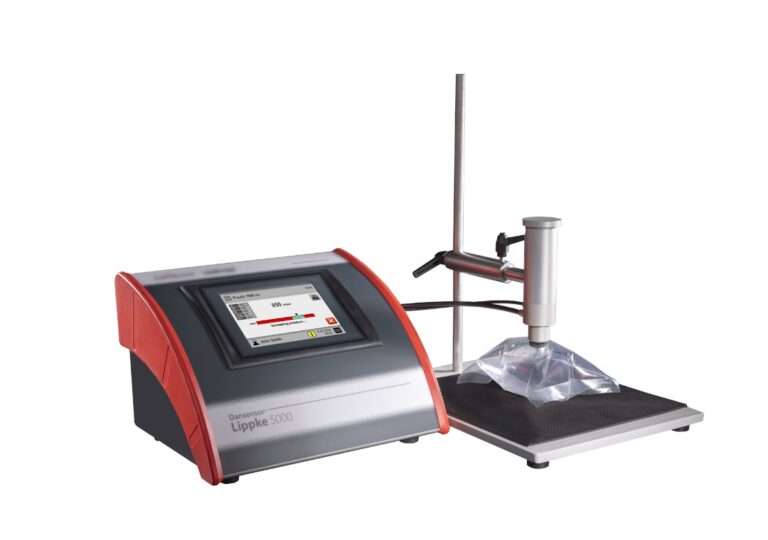

The Dansensor Lippke 5000 is a versatile and programmable instrument designed for comprehensive package integrity testing. It supports multiple test modes, each addressing specific requirements for detecting leaks, assessing seal strength, and ensuring package robustness — especially in industries like medical device packaging, food MAP packaging, and pharmaceuticals.

Below are the main test modes available on the Lippke 5000:

🟥 1. Burst Test

What it does:
Applies internal pressure to a package until it bursts. This test identifies the maximum pressure the package or seal can withstand before failure.

Why it matters:
Crucial for validating seal strength and packaging process stability — especially for high-integrity sterile barrier systems.

Standard reference:

  • ASTM F1140
  • ISO 11607-1 / ISO 11607-2

Common application:

  • Blister packs for medical syringes
  • MAP food trays
  • Vacuum-sealed pouches

🟨 2. Creep Test

What it does:
Applies pressure and holds it at a constant level for a specified time, monitoring if the seal weakens or if there’s any pressure loss.

Why it matters:
Simulates shelf-life conditions and seal durability under constant stress, helping identify weak or inconsistent sealing areas.

Standard reference:

  • ASTM F2054

Common application:

  • Long-term stored medical or food products
  • Packages exposed to altitude or pressure changes

🟦 3. Creep-to-Failure Test

What it does:
Similar to the creep test, but instead of stopping at the end of a time limit, it continues until the package fails — either by bursting or leaking.

Why it matters:
Gives a quantitative threshold of seal strength and how long a package can sustain pressure over time.

Standard reference:

  • ASTM F1140

Common application:

  • Comparative validation of different sealing machine settings

Shelf-life stress simulations

🟩 4. Leak Test

What it does:
Inflates the package to a defined pressure, then monitors for pressure drop over time — indicating possible microleaks.

Why it matters:
Detects small, invisible breaches that may compromise sterile barriers or shelf life, without visibly damaging the package.

Standard reference:

  • ASTM F2338 (Vacuum decay variation)

Common application:

  • Pharma blister packs
  • Flow wraps
  • Retort pouches

🟫 5. Bubble Emission (Submersion) Test

What it does:
The package is inflated and submerged in water. Visible bubbles indicate leak locations — useful for root cause analysis.

Why it matters:
A simple and visual test for detecting pinholes or channel leaks, especially after transport simulation or stress tests.

Standard reference:

  • ASTM F2096 (modified with pressure inflation)

Common application:

  • Leak location verification after other failed tests
  • Troubleshooting sealing line malfunctions
