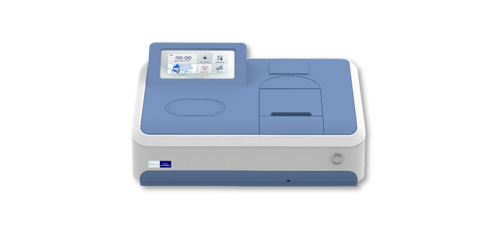

UV 200F
UV 200F UV-Visible Spectrophotometer
The Single Beam UV-VIS Spectrophotometer is designed to meet the high requirements for precision measurement in research and development across various fields. These include organic chemistry, biochemistry, medical testing, food testing, environmental and water testing.
Equipped with the latest technology and an advanced optical system, this instrument ensures exceptional accuracy and outstanding stability.
Features
- Wavelength range: 190 – 1100 nm
- Spectral bandwidth: 4 nm
- Light source: Deuterium & Tungsten Halogen Lamp
- Optical system: Single beam
- 4 cells manual holder (size 10 mm)
- Unique optical system 1200 line/mm grating
- Standalone Software function: Photometric, Quantitative measurement
- The optional PC software expands the function of Multi-wavelength, Kinetics, DNA/Protein measurement and Wavelength Scanning
- Able to store 2000 test data and 100 standard curve in the instrument
- Plug type deuterium lamp and tungsten lamps without optics debugging
- Working control: Color touch screen display
- Instrument control: Standalone and PC software
- Validation software 21CFR Part11 (option)
- Built-in thermal printer

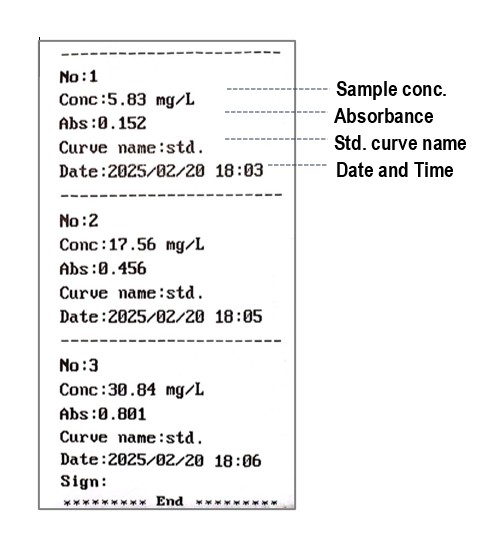

Built-in Thermal printer
The UV 200F has come with a thermal printer that prints test results directly.
Standalone Control
Users can utilize the standalone mode, which feature a large color touchscreen display. The measurement mode including photometry and quantitative modes, providing enhanced versatility and ease of operation.

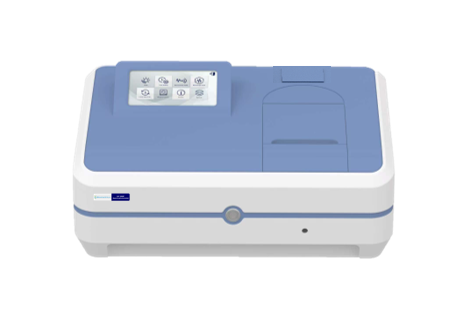

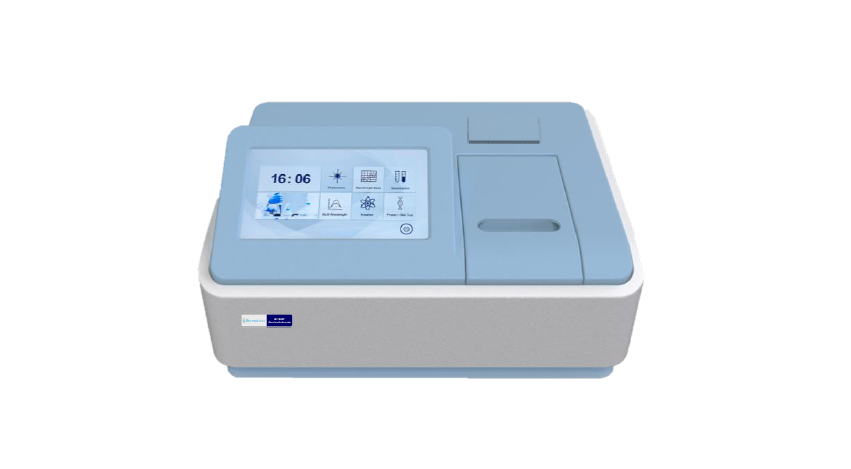

UV 300TS
UV 300TS UV-Visible Spectrophotometer
The Single Beam VIS Spectrophotometer is designed to meet the high requirements for precision measurement in research and development across various fields. These include organic chemistry, biochemistry, medical testing, food testing, environmental and water testing. Equipped with the latest technology and an advanced optical system, this instrument ensures exceptional accuracy and outstanding stability.
Features
– Wavelength range: 190 – 1100 nm
– Spectral bandwidth: 1.8 nm
– Light source: Deuterium & Tungsten Halogen Lamp
– Optical system: Single beam
– 4 cells manual holder (size 10 mm)
– Unique optical system 1200 line/mm grating
-Standalone Software function: Photometry, Multi-Wavelength, Wavelength Scan, Quantitation, Protein/DNA test and Kinetics/Time scan.
– Instrument comes with PC software
– Able to store 2000 test data and 100 standard Curve in the instrument
– Plug type deuterium lamp and tungsten lamps without optics debugging
– Working control: Color touch screen display
– Instrument control: Standalone and PC software
– Built-in thermal printer
Built-in Thermal printer
The UV 300TS has come with a thermal printer that prints standard curve and test results directly.

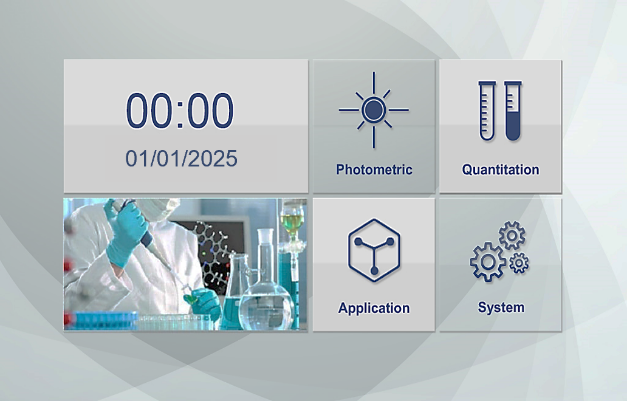

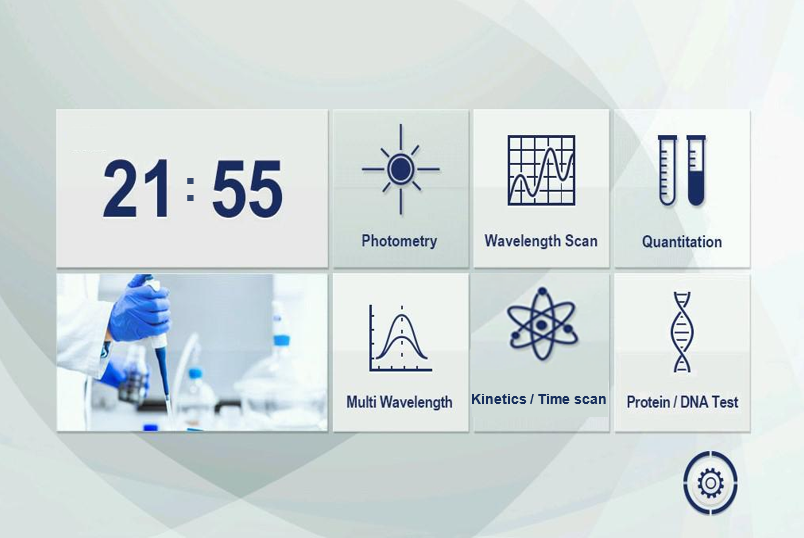

Standalone Control
Users can use standalone mode with a large display color touch screen for all working modes: Photometry, Multi-Wavelength, Wavelength Scan, Quantitation, Protein/DNA test and Kinetics.
Come with a built-in thermal printer that prints standard curves and test results directly.

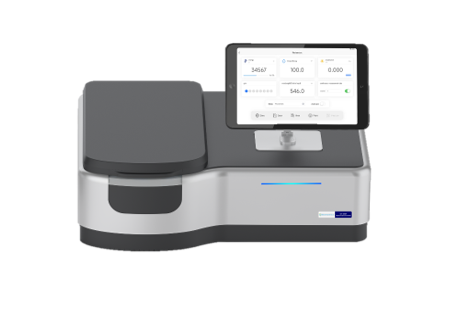

UV 600P & UV 600PV
UV 600P & UV 600PV UV-Visible Spectrophotometer

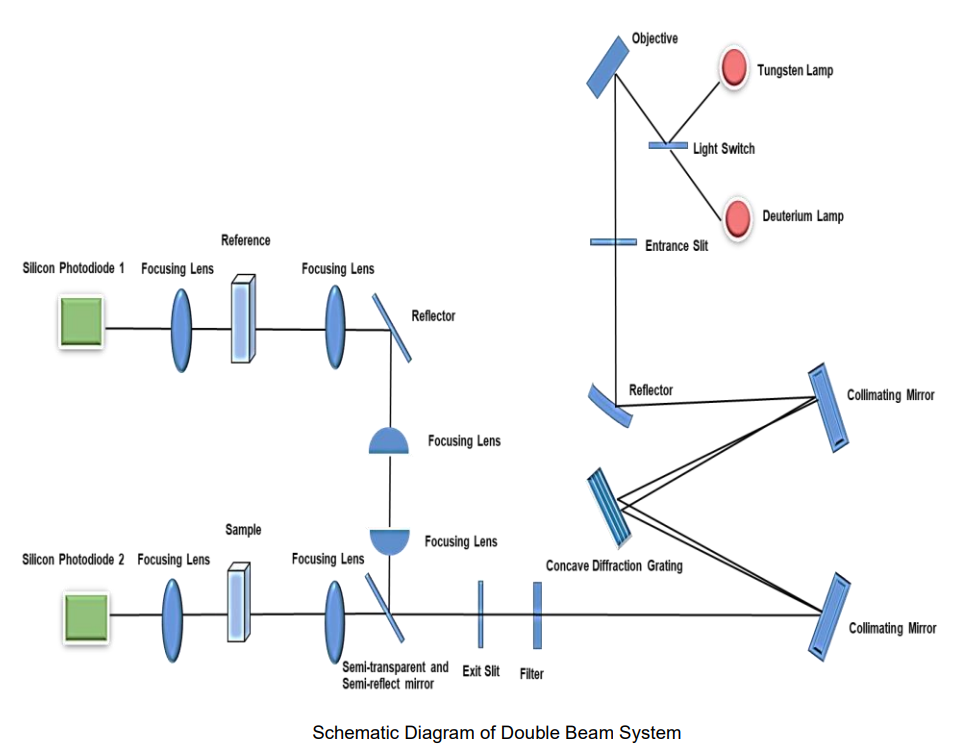

The UV 600P/ UV 600PV Double beam spectrophotometer is designed for pharmaceutical labs requiring high performance, and also compliant with the specifications required by pharmacopeia. The equipment features unique optical system 1200 lines/mm grating and a Czerny-Turner monochromator system for high-resolution data in routine quality control and research applications.
Features
- Wavelength range: 190-1100 nm
- Light source: Deuterium & Tungsten Halogen Lamp
- Optical system: Double beam
- Spectral Bandwidth: 1nm (UV 600P) and 0.5, 1, 2, 4, 5 nm (UV 600PV)
- Control via a color touch screen tablet which installs ‘UVStation’ application software by using a Bluetooth 3.0 connection and Wi-Fi. Also the users can connect a PC with the instrument.

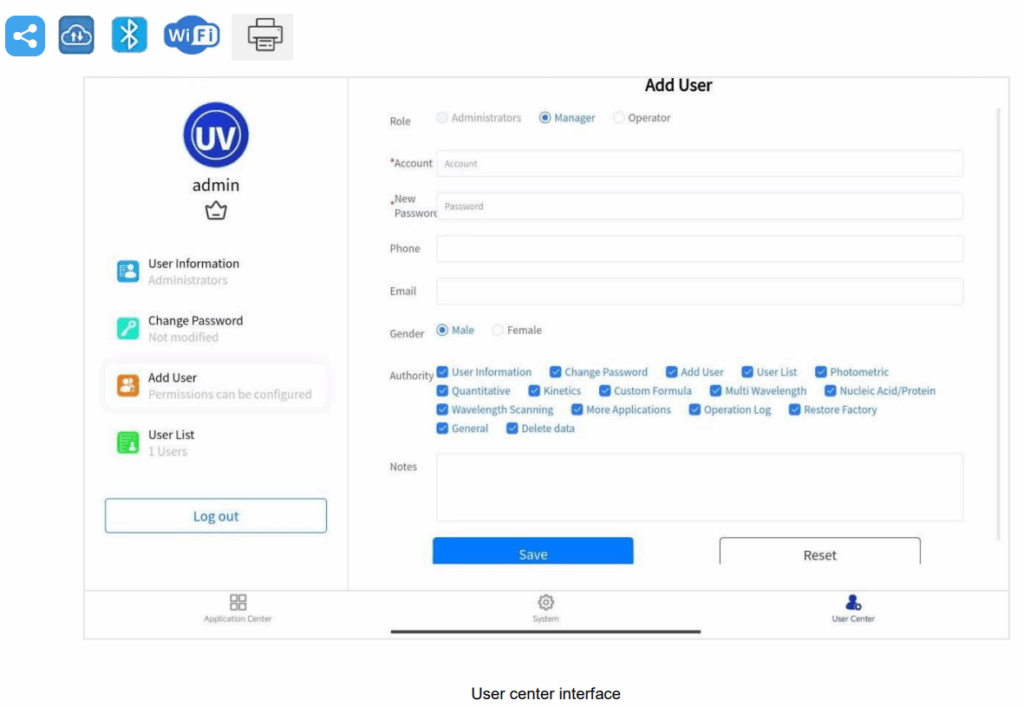

- User Center: Compliant with GLP/GMP standards. including user data and parameter management, limit user access, log inquiry, etc.
- Supporting FDA 21 CFR Part 11 (option)
- Plug type deuterium lamp and tungsten halogen lamps without optics debugging.
- Energy value that helps monitor the light intensity.
- User can select on/off manually for deuterium or tungsten halogen lamp.
- Instrument control: Standalone and PC software.

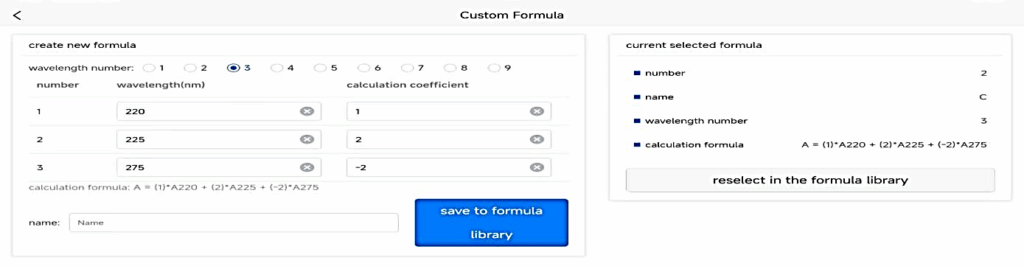

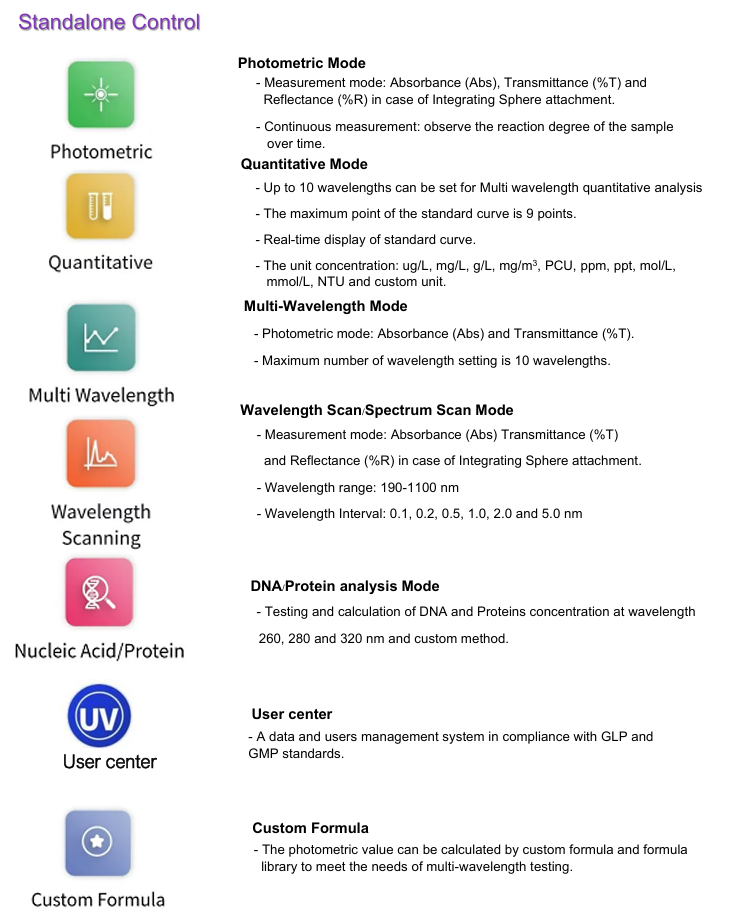

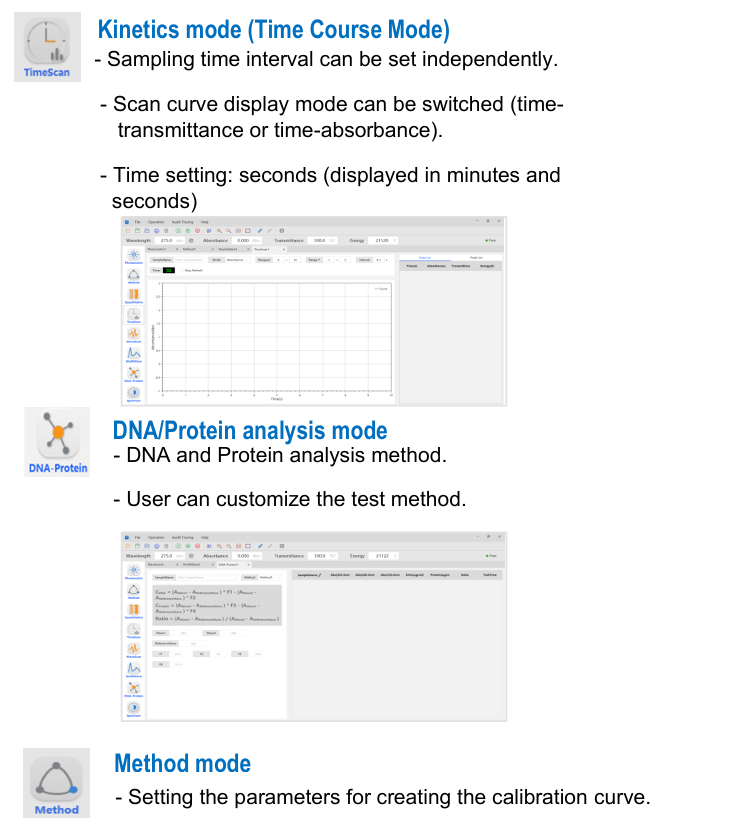

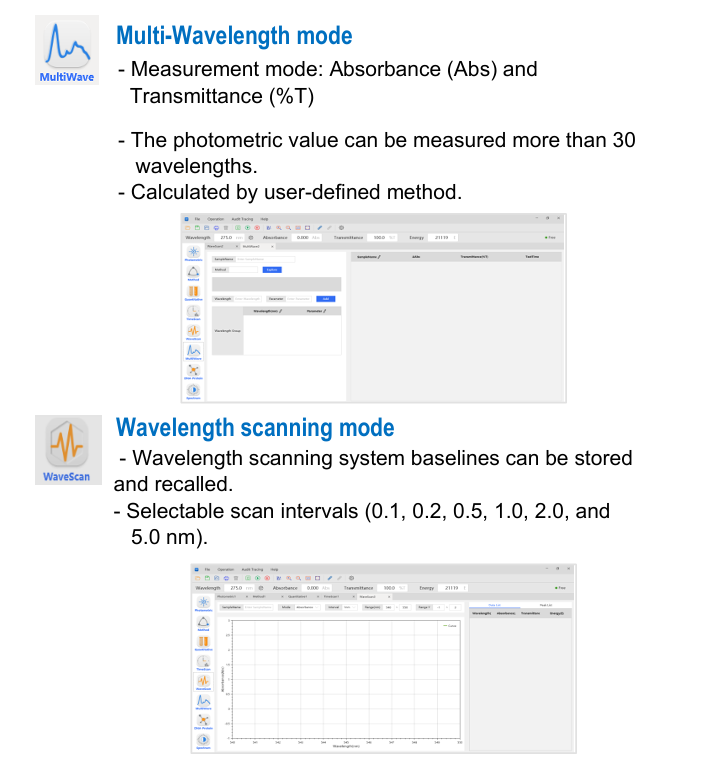

- Software function: Photometry, Wavelength Scan, Quantitative, Multi Wavelength, Kinetics (Time course), DNA/Protein, Custom formula etc.
- Support Wi-Fi printing and saving test data in PDF and Excel format for subsequent.
- Real-time sending of data via email.
- Facilitates easy data transfer via USB flash drive.

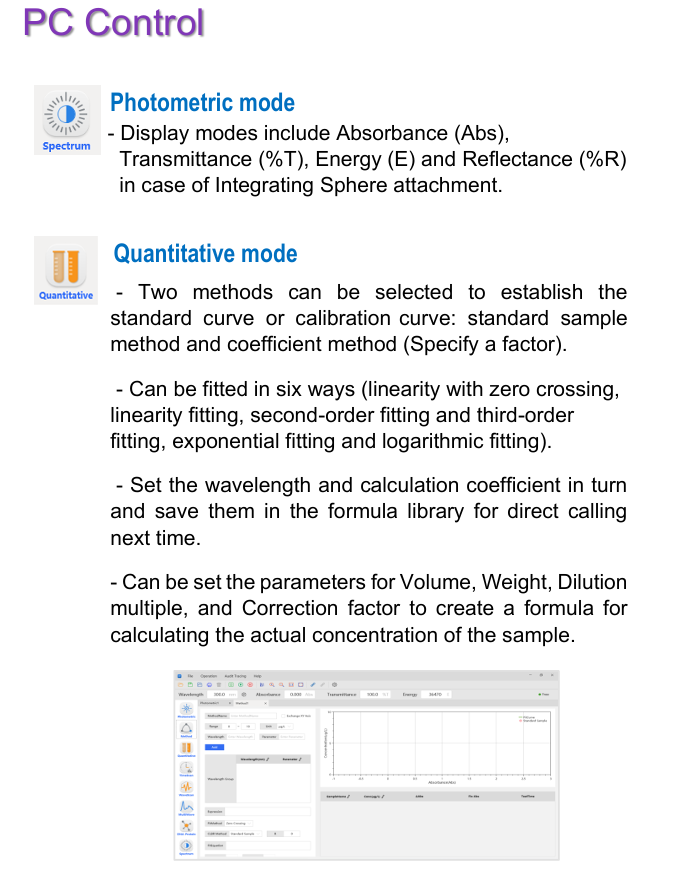

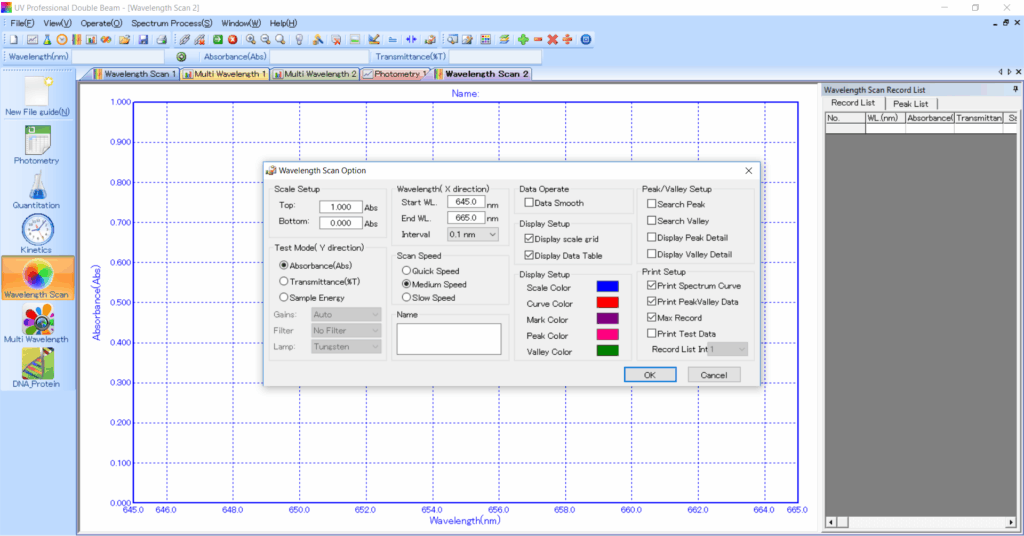

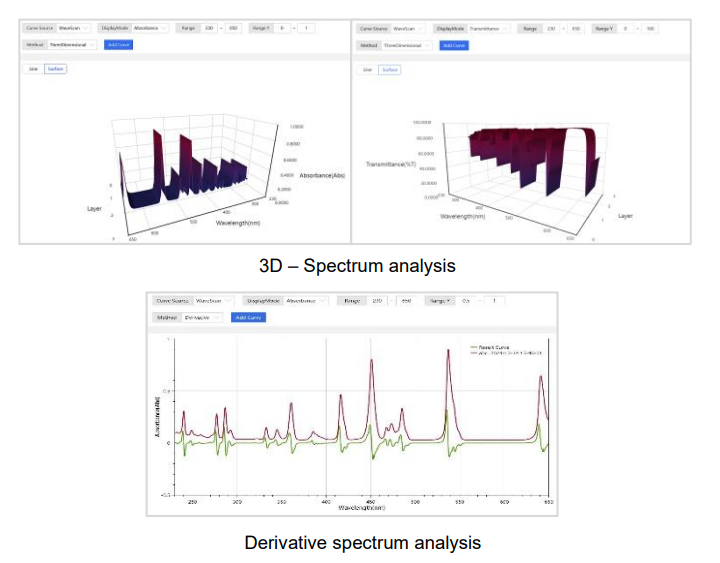

- UV Professional PC software gives additional functionality including Derivative spectrum or 3D spectrum analysis, etc.

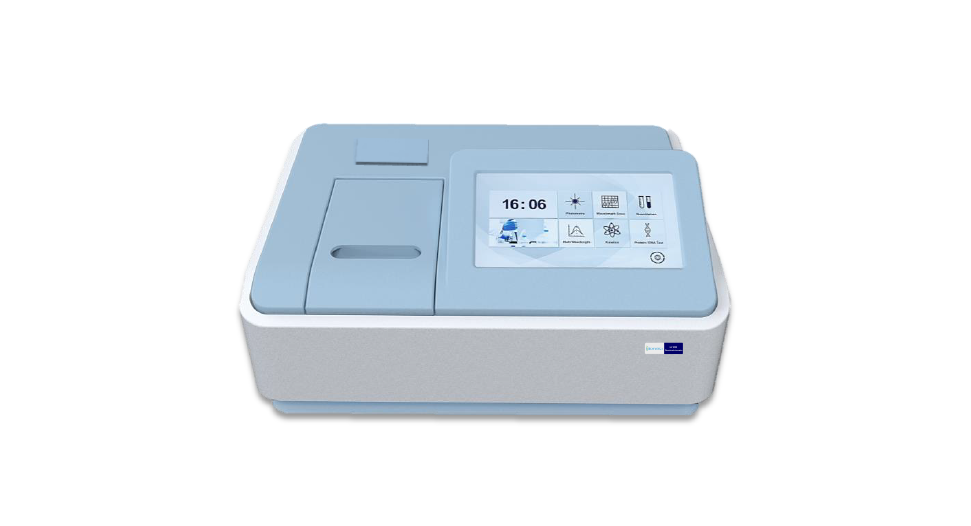

UV 600E
UV 600E UV-Visible Spectrophotometer
The UV 600E is a UV visible spectrophotometer with a double beam optical system, providing high precision, excellent repeatability, and reliable baseline stability for quality critical applications. The equipment features unique optical system 1200 lines/mm grating and a Czerny-Turner monochromator system for high-resolution data in routine quality control and research applications.
Designed to meet high requirement for precision measurement in the research and development of organic chemistry, biochemistry, medical testing, food testing, pharmaceutical industry, environmental protection, water testing and so on. The latest technology and optical system ensure high accuracy and the best stability of the instrument.
Features:
– High performance fixed 1.8 nm spectral bandwidth ensures precise and reliable measurements
– The advanced double beam optic system features a dedicated reference cell that continuously compensates for sample absorbance fluctuations and light source drift, ensuring superior measurement stability and accuracy
– Unique optical system 1200 lines/mm grating and a Czerny-Turner monochromator system
– 10.1 inches high resolution TFT color touch screen display
– With its advanced capabilities, the instrument delivers outstanding performance in both qualitative and quantitative analyses across various working modes
– Light source on/off status can be controlled
– Controlled via standalone mode and PC software
– Built-in Thermal printer
– Able to store the data results and working curves
– Facilitates easy data transfer via USB flash drive
Built-in Thermal printer
The UV 600E has come with a thermal printer that prints standard curves and test results directly.
Standalone Control
Users can use standalone mode with a large display color touch screen for all working modes: Photometry, Multi-Wavelength, Wavelength Scan, Quantitation, Protein/DNA test, Kinetics/Time scan and System Validation.
Come with a built-in thermal printer that prints standard curves and test results directly.
UV 400S
UV 400S UV-Visible Spectrophotometer
The UV 400S spectrophotometer is equipped with a Dual beam (or Split beam), which operates as a Double beam monitoring system and high-quality optical components to ensure reliable analytical data. Low stray light is achieved through advanced optical design and ultra-low noise electronic circuits. The split beam ratio optics provide excellent optical stability, making these instruments ideal for precise and consistent measurements.
This spectrophotometer is perfectly suited to use in food industry, chemical industry, clinical diagnostics, biochemical, petrochemical analysis, environmental protection, quality control and service laboratory as well as in colleges, universities, and research institutes.
Features:
– High performance fixed 1.8 nm spectral bandwidth ensures precise and reliable measurements
– The dual beam optic system allows simultaneous monitoring of sample and reference beams, delivering highly reliable and reproducible results
– Unique optical system 1200 lines/mm grating and a Czerny-Turner monochromator system
– 10.1 inches high resolution TFT color touch screen display
– With its advanced capabilities, the instrument delivers outstanding performance in both qualitative and quantitative analyses across various working modes
– Light source on/off status can be controlled
– Controlled via standalone mode and PC software
– Built-in Thermal printer
– Able to store the data results and working curves
– Facilitates easy data transfer via USB flash drive
– Come with Auto 5-cell holder (size 10-50 mm) as standard
Built-in Thermal printer
The UV 400S has come with a thermal printer that prints standard curves and test results directly.

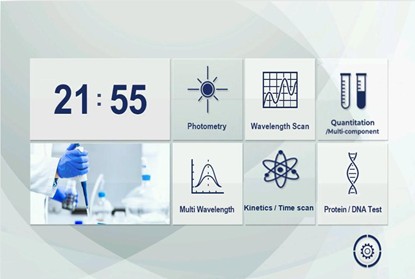

Standalone Control
Users can use standalone mode with a large display color touch screen for all working modes: Photometry, Multi-Wavelength, Wavelength Scan, Quantitation/Multi-component, Protein/DNA test, Kinetics/Time scan and System Validation.
Come with a built-in thermal printer that prints standard curves and test results directly.
Click here for more details.
