Comfort 300

Portable XRF mineral/mining/soil element analyzer

Comfort 300

EDXRF Comfort 300 spectrometer provides on-site quantitative analysis of mining products, thereby reducing the time for receiving results from days to seconds, compared to time-consuming laboratory analysis. Materials recovered by mining, minerals, or other geological materials that originate from the earth consist of all kinds of base metals – precious metals, iron, uranium, coal, limestone, oil shale, rock salt and potash – all of which can be efficiently analyzed by Comfort 300 analyzer.

Features

  • 4 Watts of excitation source
  • Rapid results acquired in seconds
  • The Comfort 300 analyzer is up to the challenge of all-day, high throughput testing
  • Lightweight (10.4 kg) and compact design that can work in harsh environment
  • Minimum training required
  • Optimized optical design for exceptional element analysis performance
  • No PC required, 8 inches Windows 10 based OS built-in
  • Self-developed DPP (Digital Pulse Processor) board
  • Fundamental parameter algorithm-based software

Typical Applications

  • Exploration and mining: from base metals and Au mining to mineral sands
  • Mine site analysis and extraction
  • Industrial minerals: limestone, clay, steel slag, cement, and more
  • Precious metal alloys: ideal tool for refiners and distributors
  • Environmental: test for RCRA metals at less than 10 ppm in soils
Comfort 300
Comfort 300

High Precision Results Without Daily Calibration Needed

Comfort 300

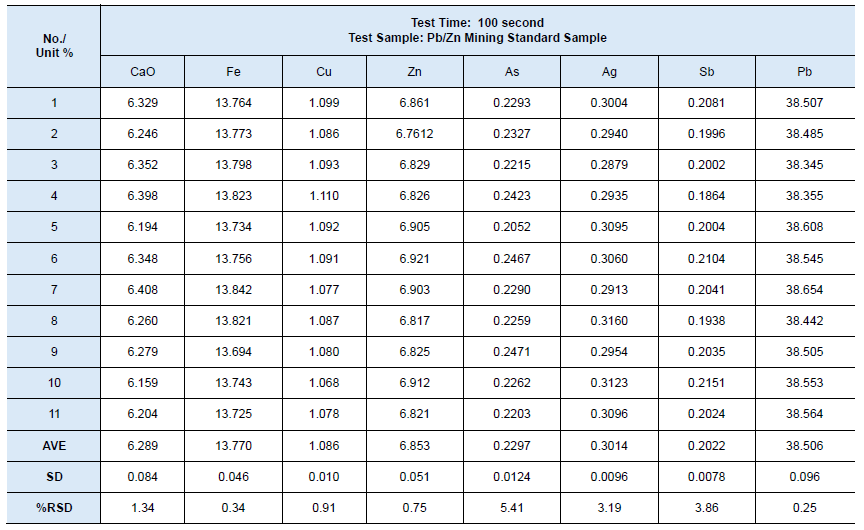

Table 1: Test Performance of Pb/Zn Mining Standard Sample
