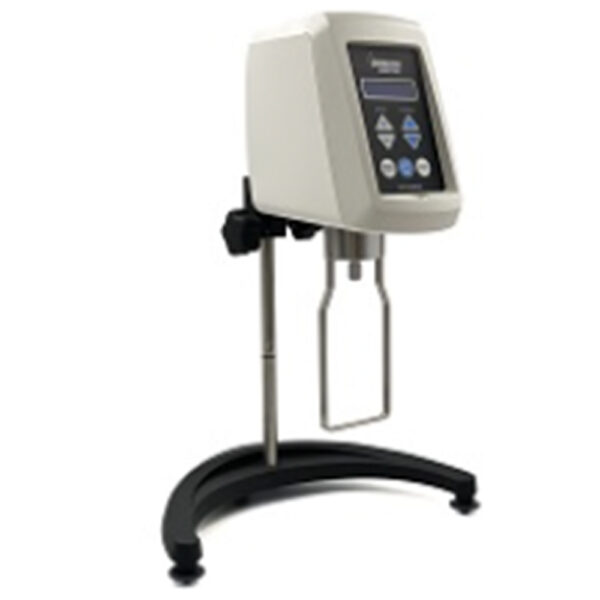

Description
FEATURES & BENEFITS
Low cost and easy to use
Direct display in: cP or maps, % Torque, Spindle, and Speed
Torque measurement accuracy: 1% of full scale range
Repeatability: 0.2% of full scale range
Compatible with all Brookfield accessories
NIST traceable viscosity standards available
18 speeds for greater range capability (0.3 to 100 rpm)
TORQUE EXPLANATIONS:
LV is for low viscosity materials and can measure the thinnest materials. Typical examples include inks, oils, and solvents.
RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints.
HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies.
HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses.
LEARN ABOUT VISCOSITY
Need help? Our Education section may be just the thing to clarify unfamiliar terms and help start you on your way to a better understanding of viscosity. Learn about viscosity and rheological relationships, Newtonian and non-Newtonian fluids, how a Brookfield instrument can help your production process, and much more.
HELP ME CHOOSE
Having difficulties determining what instrument is best for you? Try our Help Me Choose section for guidance on the model selection process, spindle construction considerations, and other useful information to help you make an informed decision on the best instrument for your application.
ANNUAL CALIBRATION SERVICE (RECOMMENDED)
We recommend that this instrument be returned to Brookfield or an authorized dealer on an annual basis for our Calibration & Repair Service. Having this annual maintenance done will ensure the instrument’s long life and optimal performance.
What’s Included
Instrument
6 spindles (RV/HA/HB)
or 4 spindles (LV)
Spindle Guard Leg*
Lab Stand (Model A)
Carrying Case
*Not applicable to HA or HB versions
| VISCOSITY RANGE cP (mPa•s) |
SPEEDS | |||
| MODEL | Min. | Max. | RPM | Number of Increments |
| LVDV-E | 1† | 2M | 0.3-100 | 18 |
| RVDV-E | 100†† | 13M | 0.3-100 | 18 |
| HADV-E | 200†† | 26M | 0.3-100 | 18 |
| HBDV-E | 800†† | 104M | 0.3-100 | 18 |
SPRING TORQUE
| SPRING TORQUE | ||
| MODEL | Dyne-cm | Milli Newton-m |
| LVDV-E | 673.7 | 0.0673 |
| RVDV-E | 7,187.0 | 0.7187 |
| HADV-E | 14,374.0 | 1.4374 |
| HBDV-E | 57,496.0 | 5.7496 |
† 1 cP achieved with UL Adapter accessory. 15 cP on LV with standard spindles.
††Minimum viscosity is achieved with optional RV/HA/HB spindle.
B=1 Billion M=1 million cP=Centipoise mPa·s=Millipascal·seconds
